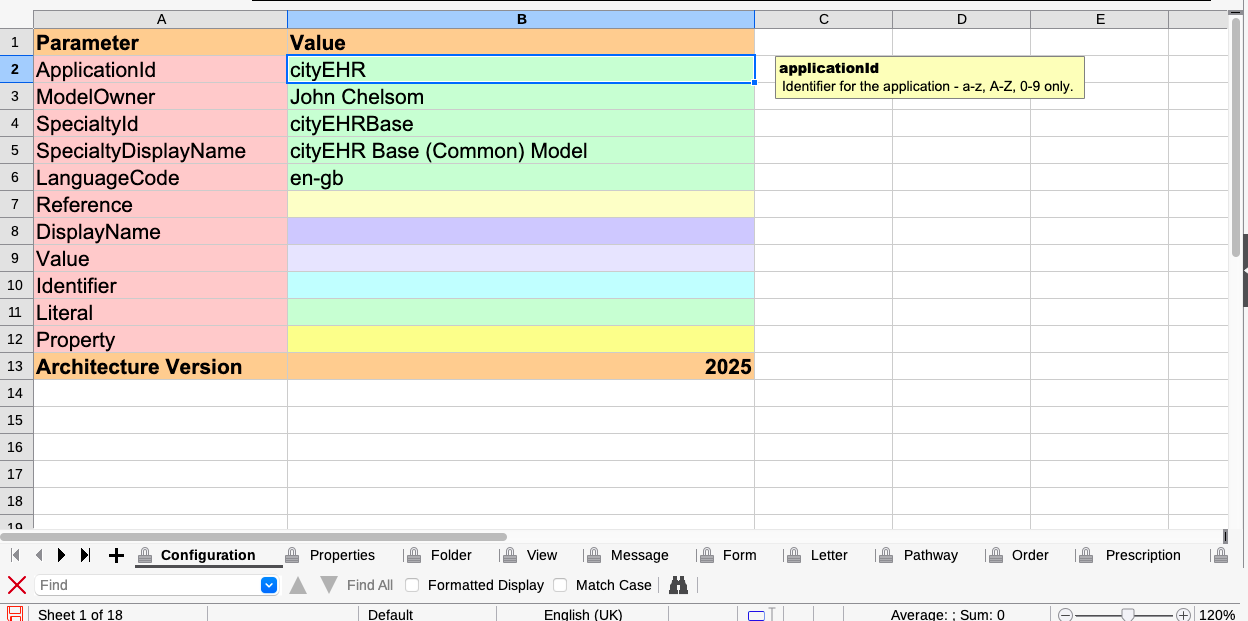

Configuration Sheet
Configuration Parameters Definitions
|
Parameter |
Description |
|---|---|
|
ApplicationId |
The identifier for the cityEHR application that is driven by this model. The file can only be loaded for the application with this identifier. Required |
|
ModelOwner |
Name of the model owner – copyright is asserted in the ontology |
|
SpecialtyId |
The identifier for the specialty (folder) for this model. Required |
|
SpecialtyDisplayName |
The display name (title) for the specialty |
|
LanguageCode |
The pair of ISO 639-1 language code and ISO 3166-1 Alpha-2 country code. For example en-gb (which is the default). |
|
Field type |
Colour |
Description |
|---|---|---|
|
Reference |
#FFFFCC |
A reference to an ISO 13606 component, selected in a drop-down menu |
|
DisplayName |
#CCCCFF |
The display name (title) of an ISO 13606 component or data value. |
|
Value |
#E6E6FF |
A (categorical) value of the Data for an ISO 13606 Element |
|
Identifier |
#CCFFFF |
The identifier for an ISO 13606 component. Must be unique on each sheet (i.e. for each component type). A-z, A-Z, 0-9,, -, _, . (dot) only. |
|
Literal |
#D3FFD5 |
The string literal for a data property, including calculations. |
|
Property |
#FFFF99 |
The value of an object property, selected in a drop-down menu |
